Toilet Flapper Factory
Home Toilet Flush Valve

Wire Controlled Dual Flush Toilet Flush Valve

Wire Controlled Dual Flush Toilet Flush Valve

The wire controlled dual flush toilet flush valve is designed for 2 inch toilets. Compatible with both top-button and side-button toilet tanks.

  • Item No :

    T0209
  • Flush Type :

    Dual Flush
  • Flush Outlet Size :

    2 Inch
  • Toilet Configuration :

    One-piece / Two-piece
  • Certification :

    CE
  • Warranty :

    3-5 Years
  • Order(MOQ) :

    1000
  • Shipping Port :

    Xiamen
  • Custom Service :

    LOGO,Package,Color



    PRODUCT DESCRIPTION



Product Name:Wire Controlled Dual Flush Toilet Flush Valve



The main body of this wire controlled dual flush toilet flush valve is made of ABS and is entirely produced using 100% virgin material, without any recycled materials. This ensures high overall strength and prevents cracking or bursting.Silicon seal is free from leaking, corrosion resistance, suitable for different water quality, long life-time.



Half flush volume and full flush volume are adjustable.Half flush volume from large to small can be adjusted by turning top knob. Full flush volume from large to small can be adjusted by moving clip down to up.

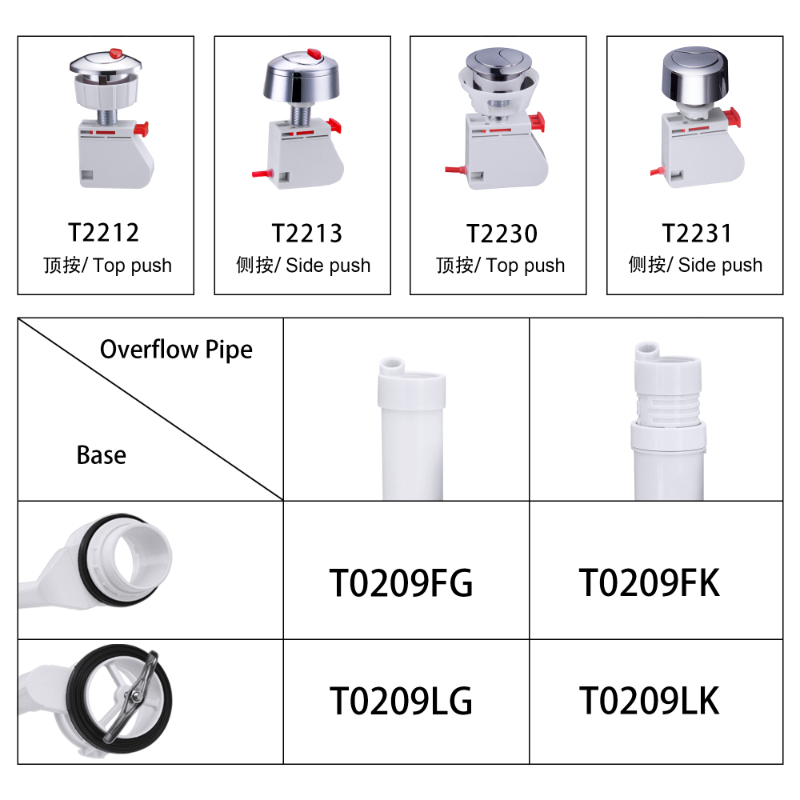

The bottom can be separated and connected, and the overflow pipe can be adjustable and fixed, overflow pipe can be adjusted with a height of 200mm to 320mm.Note:Below is the product configuration and model correspondence table. Please select the appropriate model based on your needs.If you have any questions, please feel free to contact us.



  Fixed Overflow Pipe Adjustable Overflow Pipe
Suit for two-piece toilet T0209FG T0209FK
Suit for one-piece toilet T0209LG T0209LK



Also can choose from our cable button models:

  Top Push Button Side Push Button Top And Side Both Can Use
Oval Button T2212 T2213 T2213-A
Round Button T2230 T2231 T2232



This product, like T0218 and T0209, features a cable-controlled flush mechanism. The difference from T0218 lies in the decorative cover on the top of the flush valve and the method of adjusting the half-flush float cup, while the difference from T0209 is solely in the adjustment method of the half-flush float cup.



Below are more parametre details about this product.



Material: ABS
Control: Cable controlled / Top and side button available
Flush Rate: 2.4-3 L/S
Delivery Time:

≤ 1000 pcs / 15 days

≤ 5000 pcs / 20 days

> 5000 pcs / negotiate

Sample Service Yes
Supply Ability 60000 pcs / month



Our Wire Controlled Dual Flush Toilet Flush Valve delivers precise and effortless flushing control, making it a top choice among various toilet flushing valve types. Compatible with most types of toilet flush valves, it provides versatility and ease of installation. Known for outstanding reliability and performance, it consistently ranks as the best toilet flush valve, outperforming other available toilet flush valves types in both efficiency and durability.



    PRODUCT ADVANTAGES



1. Proven Performance Across Multiple Markets

Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.



2. Comprehensive Customization Services

We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.



3. Certified for Global Compliance

This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.



    FAQ



What should be considered when purchasing this product?

First, consider whether the flush valve is intended for a two-piece or one-piece toilet. The base design of the flush valve differs based on the application: two-piece toilets use a nut to secure the flush valve, while one-piece toilets use a steel hook for fixation.

Second, choose between an adjustable overflow pipe and a fixed overflow pipe. The length of the overflow pipe is determined by the working water level of the tank. If the working water level is uncertain, it is recommended to select an adjustable overflow pipe. The fixed overflow pipe has a default length of 200mm, which is suitable for most toilet tanks.



What is the function of the overflow pipe?

The overflow pipe serves two functions:

First, When the water seal in the toilet bowl is insufficient, the refill tube of the inlet valve directs water through the overflow pipe to replenish the bowl. This helps form a water seal in the U-shaped trap, preventing sewer odors from escaping and contaminating the bathroom.

Second, In the event of a severe malfunction or rupture of the inlet valve that prevents it from stopping the water flow, the overflow pipe allows excess water in the tank to drain out. This prevents the tank from overflowing, which could otherwise flood the bathroom or even adjacent rooms, causing significant damage.



What is the drainage rate of this product?

The standard drainage rate of the toilet dual flush valve ranges from 2.4 to 3 liters per second.



What are the optional components for this product?

The default colors for the full-flush adjustment plate, half-flush knob, cable control ring, and control wire are as shown in the image. However, blue or other colors are also available. For additional color requirements, please contact us, and we will provide a satisfactory solution.



What is the usual packing for this product?

It is packed with transparent PE bag and put into 50*35*40 blank outer box, each item can put 25 pcs, the weight is 10.6KG.
