The single float bucket toilet fill valve features a simple structure with a deeply embedded water inlet design. It is a classic model that has been sold in the market for many years.
Item No :
T1202Connector :
G1/2",15/16-14NPSM ABS threadWater Pressure :
4-150p.s.i.g(0.3-10bar)(0.03Mpa-1Mpa)Toilet Configuration :
One piece/two pieceWarranty :
3yearsOrder(MOQ) :
1000Shipping Port :
XiamenCustom Service :
LOGO,Package,Color
PRODUCT DESCRIPTION
Product Name:Single Float Bucket Toilet Fill Valve
The main body of this bottom entry toilet fill valve is made of ABS and is entirely produced using 100% virgin material, without any recycled materials. This ensures high overall strength and prevents cracking or bursting.

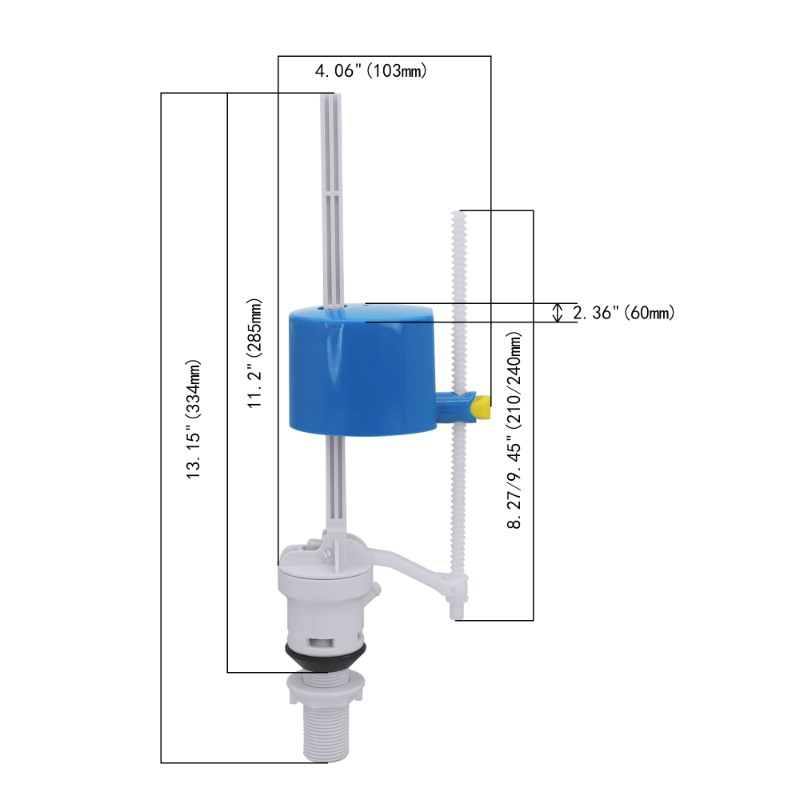

The product features is integrated floating bucket design, saving space, spring regulator is used to fix the position of the float, and the water level can be adjusted by adjusting it up and down.The main body has a fixed height of 300mm and cannot be adjusted. However, the float cup height can be adjusted to control the working water level of the tank.
Best rated toilet fill valve has a wide operating water pressure range, functioning efficiently at a minimum of 0.03 MPa and ensuring rapid shut-off even under a maximum pressure of 1 MPa.
The inlet connection is available in various sizes, with multiple material options to meet the requirements of different countries and regions.
Note:
The size and thread type of the inlet connection are critical for toilet fill valves. If you have any questions, please contact us immediately.
Anti-syphon Function: | Yes |
Refill Rate: | 0-28% |
Color: | White |
Delivery Time: |
≤ 5000 pcs / 20 days ≤ 20000 pcs / 30 days > 20000 pcs / negotiate |
Sample Service | Yes |
Supply Ability | 50000 pcs / month |
Our Single Float Bucket Toilet Fill Valve provides exceptional performance, especially suited for applications requiring a deep buried toilet fill valve design. Widely recognized as the best toilet fill valve in terms of reliability and quiet operation, it's also considered the best toilet tank fill valve available today. With a highly competitive cost of toilet fill valve, this product combines affordability, durability, and superior functionality, delivering unmatched value for your toilet system.
PRODUCT ADVANTAGES
1. Proven Performance Across Multiple Markets
Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.
2. Comprehensive Customization Services
We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.
3. Certified for Global Compliance
This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.
FAQ
What are the dimensions and specifications of the water inlet of this product?
G1/2'' POM thread , 15/16-14NPSM POM thread / G7/8'' POM thread.
What is difference between G7/8'' and 15/16-14NPSM?
The G7/8" and 15/16-14NPSM inlet thread standards differ primarily in thread angle, pitch. The G7/8" follows the BSPP (British Standard Pipe Parallel) standard with a 55° thread angle and 11 TPI (threads per inch). In contrast, the 15/16-14NPSM adheres to the NPSM (National Pipe Straight Mechanical) standard with a 60° thread angle and 14 TPI.Although there are some differences in specifications,but it is not affected in the actual use of the toilet fill valve, and the G7/8 "and 15/16-14NPSM can be connected to the same water inlet pipe, and normal use.
How to choose the water inlet size of the toilet fill valve?
South America use G1/2, but Peru uses G7/8 "or 15/16-14NPSM, and North America uses 15/16-14NPSM.
What is the water pressure range for this product?
The applicable water pressure range for this bottom entry toilet fill valve is 4-150p.s.i.g, or 0.3-10bar, or 0.03Mpa-1Mpa.
What is the adjustable height range of this product?
The main body has a fixed height of 300mm and cannot be adjusted. However, the float cup height can be adjusted to control the working water level of the tank.
What is the usual packing for this product?
It is packed with transparent PE bag and put into 50*35*40 blank outer box, each item can put 50 pcs, the weight is between 8.7KG.
WHY CHOOSE US?
1.Market Experience
Since 2004, we have been deeply engaged in the replacement and repair market. Our products have been tested by the market and continuously improved through multiple iterations. By choosing our products to expand your business, you can effectively avoid customer complaints.
2.Quality Guarantee
We adhere to high manufacturing standards, ensuring that every product undergoes rigorous testing for durability and compatibility. With our 3 years warranty, you can trust in the long-term reliability of our products, providing peace of mind for your business.
3.R&D Ability
We have our own product designers and packaging designers who can help you quickly develop and improve products to meet the needs of your local market. This ensures that your business gains recognition and success in your target market.
4.Customer Support
We assign a dedicated salesperson to each customer, providing market consultation in the early stages, detailed confirmation during production, and follow-up support after shipment. Our goal is to support your business at every step, ensuring a smooth and successful operation.
