Side Entry Toilet Fill Valve And Bucket Type Flush Toilet Flush Valve With Shelf
This set features a side-entry fill valve paired with a 260mm tall flush valve in a bracketed version, ensuring stable installation and reliable performance.
Item No :
T1307+T0206Toilet Configuration :
One-piece / Two-pieceCertification :
CEWarranty :
3-5 YearsOrder(MOQ) :
1000 setShipping Port :
XiamenCustom Service :
LOGO,Package,Color
PRODUCT DESCRIPTION
Product Name:Side Entry Toilet Fill Valve And Bucket Type Flush Toilet Flush Valve With Shelf

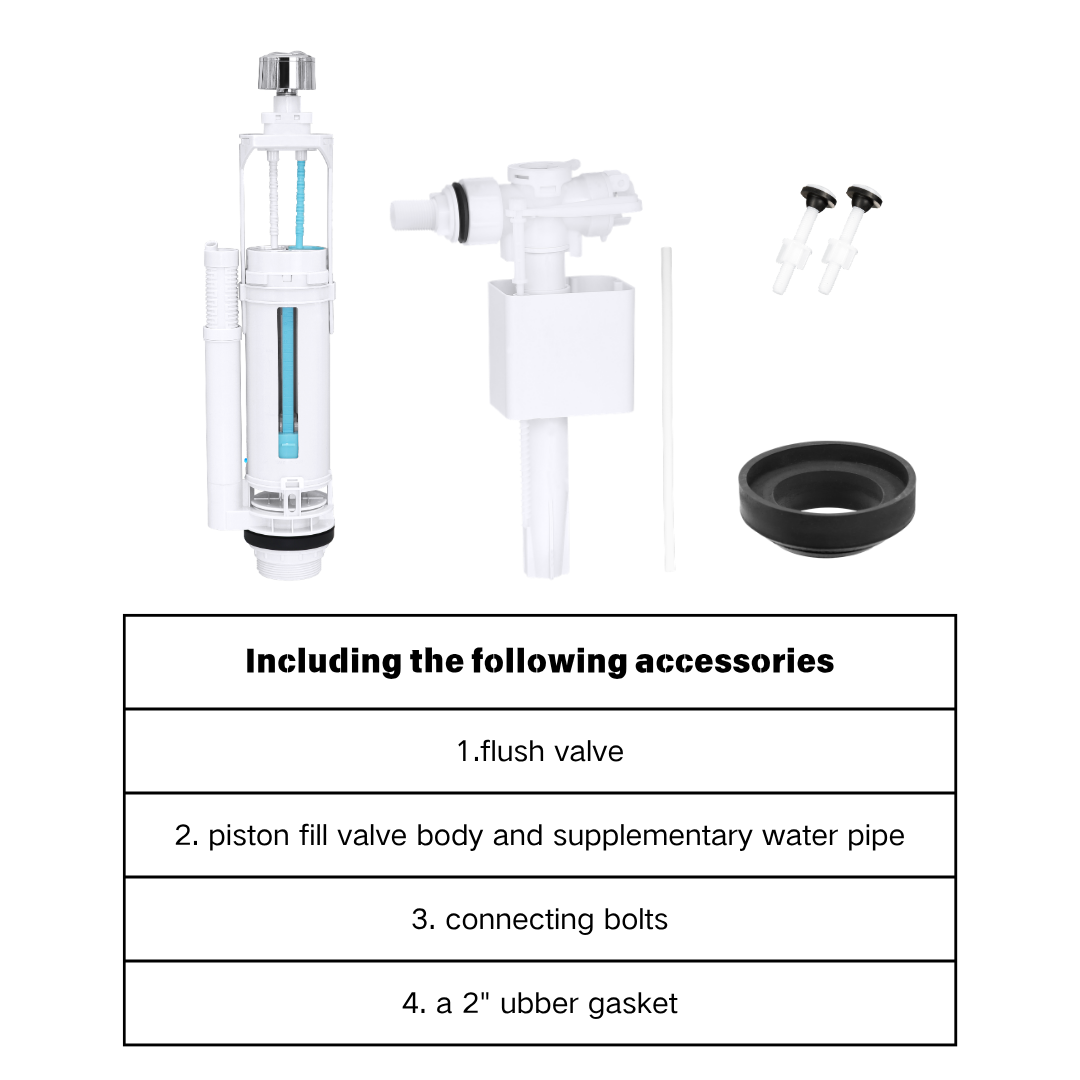

Our flushing mechanism inside the toilet cistern provides a complete solution for efficient and reliable flushing performance. This high-quality toilet cistern mechanism includes both an inlet valve and a flush valve, ensuring smooth water flow and leak prevention. Designed for easy installation, the flushing mechanism toilet cistern is compatible with most standard tanks. Whether upgrading or repairing, our toilet cistern flush mechanism offers durability and water-saving functionality. Ideal for maintenance, this set is perfect for toilet cistern mechanism replacement, restoring optimal flushing efficiency.

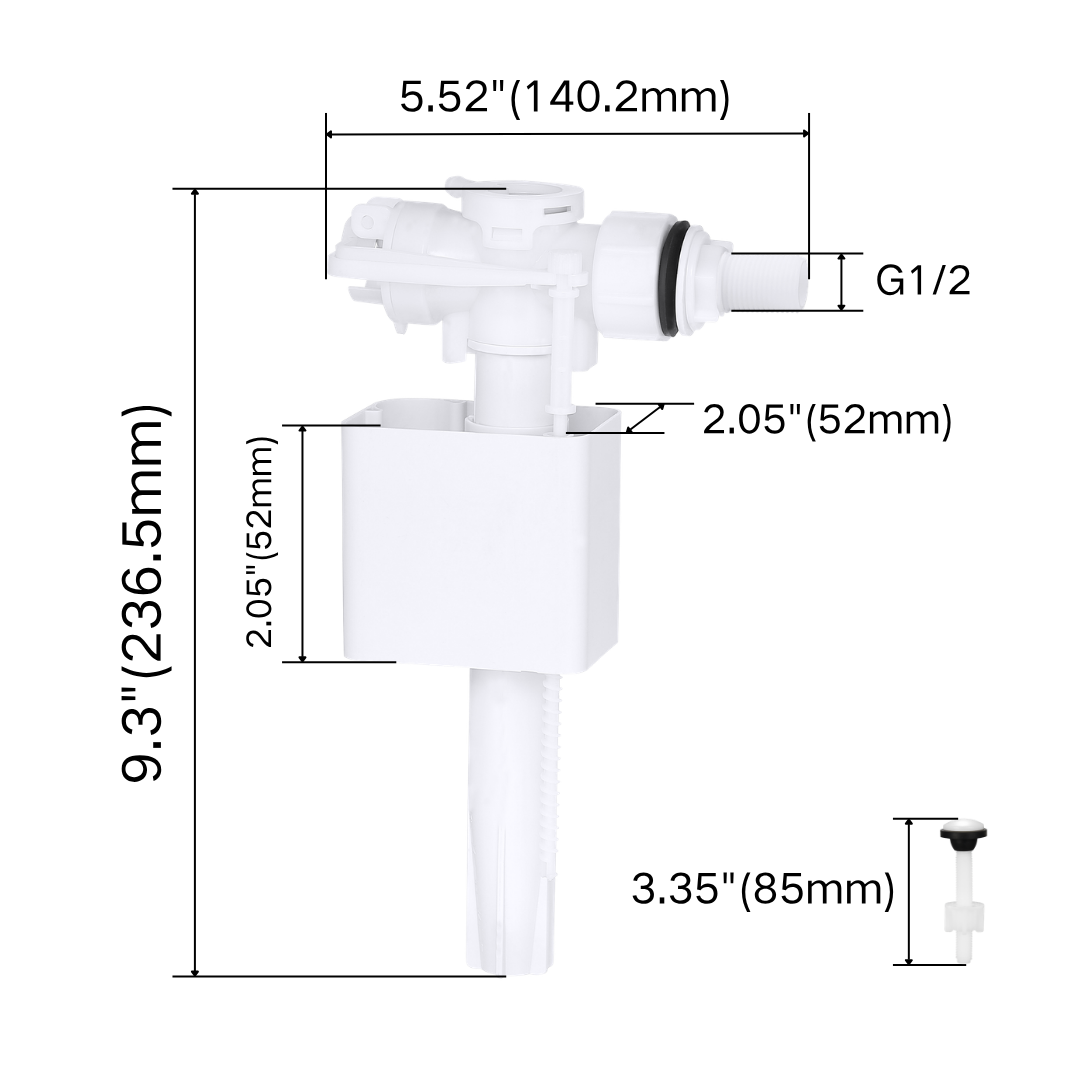

The main body of this side entry toilet fill valve is made of POM and ABS.It is entirely produced using 100% virgin material, without any recycled materials. This ensures high overall strength and prevents cracking or bursting.

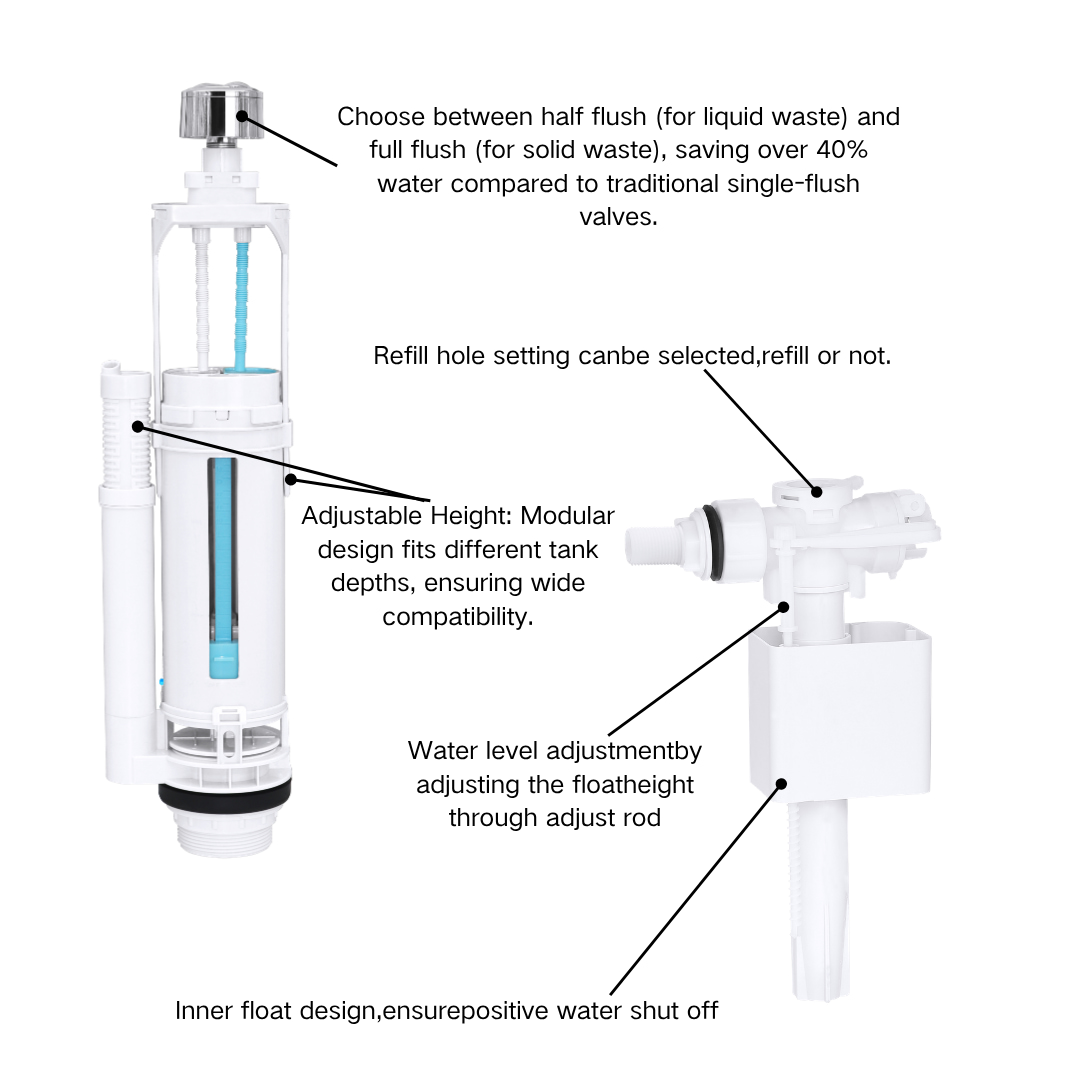

Pressure type design can ensure positive water shut-off with different water pressure and with the function of sound off and anti-siphon.Inner float design, ensure positive water shut off. Special water outlet tube design, reduce water inlet noise.
Water level adjustment by adjusting the float height through adjust rod, making it suitable for different tank heights.
Best rated toilet fill valve has a wide operating water pressure range, functioning efficiently at a minimum of 0.03 MPa and ensuring rapid shut-off even under a maximum pressure of 1.2 MPa.
The inlet connection is available in various sizes and thread types, with multiple material options to meet the requirements of different countries and regions.
Note:
The size and thread type of the inlet connection are critical for toilet fill valves. If you have any questions, please contact us immediately.
Anti-syphon Function: | Yes |
Refill Rate: | 0-28% |
Color: | White |
Delivery Time: |
≤ 1000 pcs / 15 days ≤ 5000 pcs / 20 days > 5000 pcs / negotiate |
Sample Service | Yes |
Supply Ability | 50000 pcs / month |
Half flush volume and full flush volume are adjustable.Half flush volume and full flush volume from large to small can be adjusted by moving float down to up.

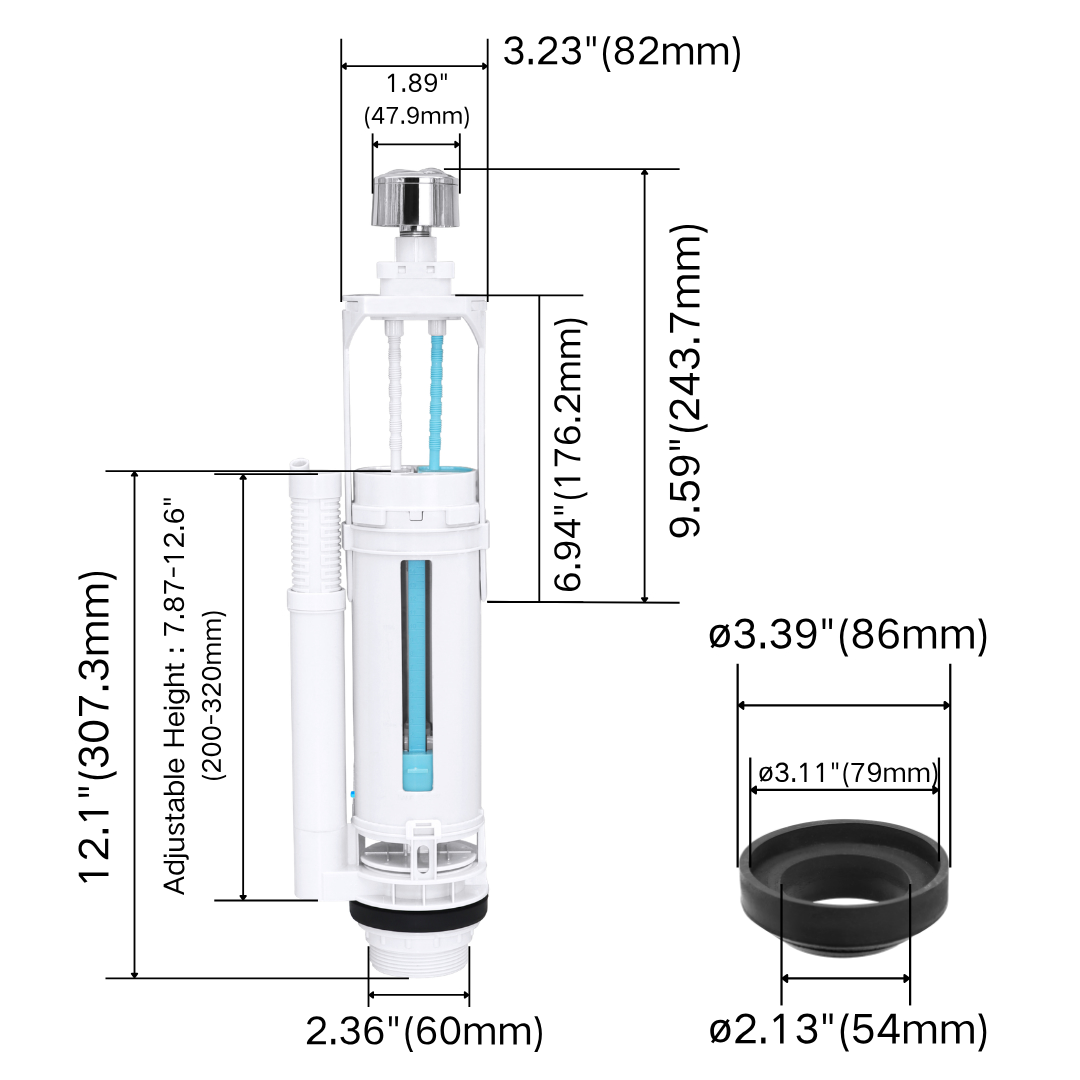

The bottom can be separated and connected, and the overflow pipe can be adjustable and fixed, overflow pipe can be adjusted with a height of 200mm to 320mm. The bucket height is 260mm. we offer a bracketed version based on the 260mm bucket height to accommodate taller toilet tanks. Note:Below is the product configuration and model correspondence table. Please select the appropriate model based on your needs.If you have any questions, please feel free to contact us.
Material: | ABS |
Control: | Top push button |
Flush Rate: | 2.4-3 L/S |
Delivery Time: |
≤ 1000 pcs / 15 days ≤ 5000 pcs / 20 days > 5000 pcs / negotiate |
Sample Service | Yes |
Supply Ability | 60000 pcs / month |
PRODUCT ADVANTAGES
1. Proven Performance Across Multiple Markets
Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.
2. Comprehensive Customization Services
We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.
3. Certified for Global Compliance
This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.
FAQ
What are the dimensions and specifications of the water inlet of this product?
G3/8'' POM thread, G3/8'' brass thread , G1/2'' POM thread , G1/2'' brass thread.
How to choose the water inlet size of the toilet fill valve?
Europe and Africa use G3/8 ", the Middle East uses G3/8 "and G1/2", Asia and South America use G1/2.
What is the water pressure range for this product?
The applicable water pressure range for this bottom entry toilet fill valve is 4-175p.s.i.g, or 0.3-12bar, or 0.03Mpa-1.2Mpa.
What should be considered when purchasing this product?
First, consider whether the flush valve is intended for a two-piece or one-piece toilet. The base design of the flush valve differs based on the application: two-piece toilets use a nut to secure the flush valve, while one-piece toilets use a steel hook for fixation.
Second, choose between an adjustable overflow pipe and a fixed overflow pipe. The length of the overflow pipe is determined by the working water level of the tank. If the working water level is uncertain, it is recommended to select an adjustable overflow pipe. The fixed overflow pipe has a default length of 200mm, which is suitable for most toilet tanks.
What is the function of the overflow pipe?
The overflow pipe serves two functions:
First, When the water seal in the toilet bowl is insufficient, the refill tube of the inlet valve directs water through the overflow pipe to replenish the bowl. This helps form a water seal in the U-shaped trap, preventing sewer odors from escaping and contaminating the bathroom.
Second, In the event of a severe malfunction or rupture of the inlet valve that prevents it from stopping the water flow, the overflow pipe allows excess water in the tank to drain out. This prevents the tank from overflowing, which could otherwise flood the bathroom or even adjacent rooms, causing significant damage.
What is the drainage rate of this product?
The standard drainage rate of the toilet dual flush valve ranges from 2.4 to 3 liters per second.
