This needle valve type toilet fill valve is compatible with most toilets and features an adjustable height design to fit various cisterns. It offers quickly shut-off, anti-siphon protection, and high-pressure resistance, ensuring efficient water refill and long-lasting performance.
Item No :
T1115Connector :
G1/2",15/16-14NPSM POM threadWater Pressure :
4-220p.s.i.g(0.3-15bar)(0.03Mpa-1.5Mpa)Toilet Configuration :
One piece/two pieceCertification :
CEWarranty :
3yearsOrder(MOQ) :
1000Shipping Port :
XiamenCustom Service :
LOGO,Package,Color
PRODUCT DESCRIPTION

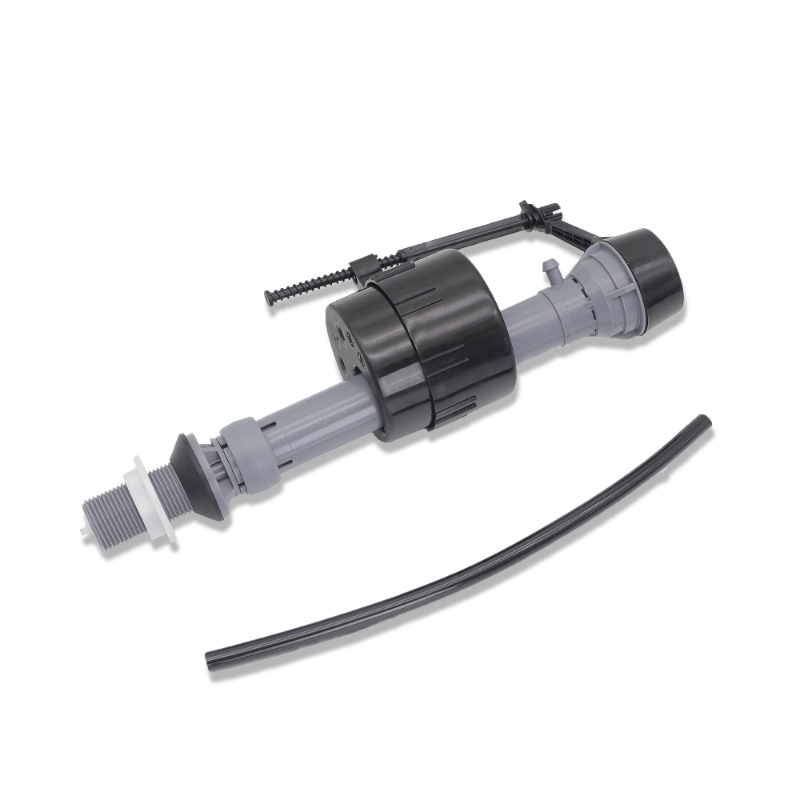

Product Name:Needle Valve Type Toilet Fill Valve

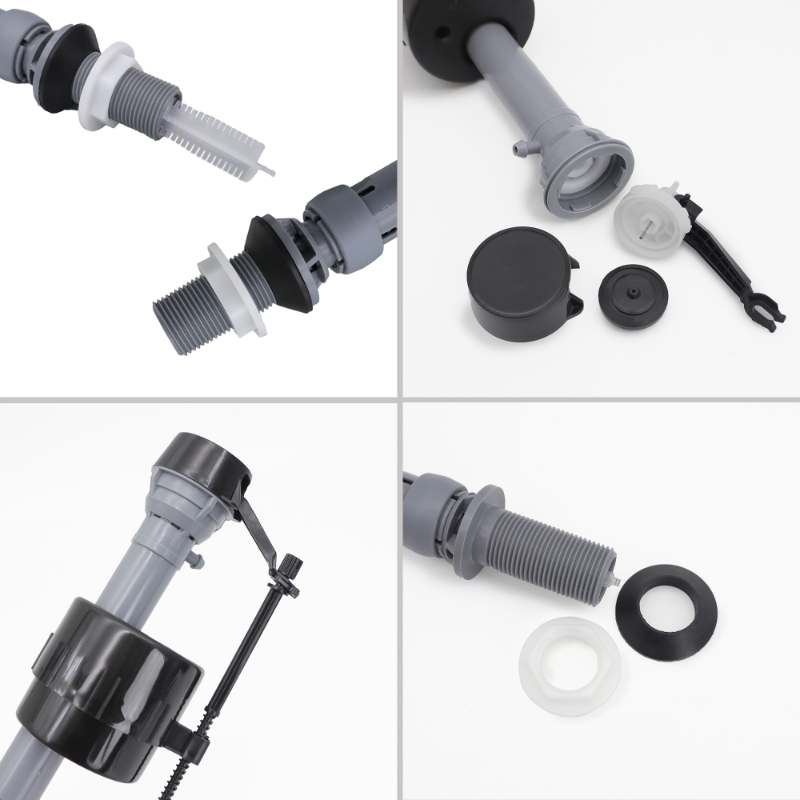

The main body of this needle valve type toilet fill valve is made of POM and is entirely produced using 100% virgin material, without any recycled materials. This ensures high overall strength and prevents cracking or bursting.
The product features needle valve type and back-pressure structure, enabling a quickly shut-off function. It is also equipped with an anti-siphon base and gasket, effectively preventing backflow contamination.

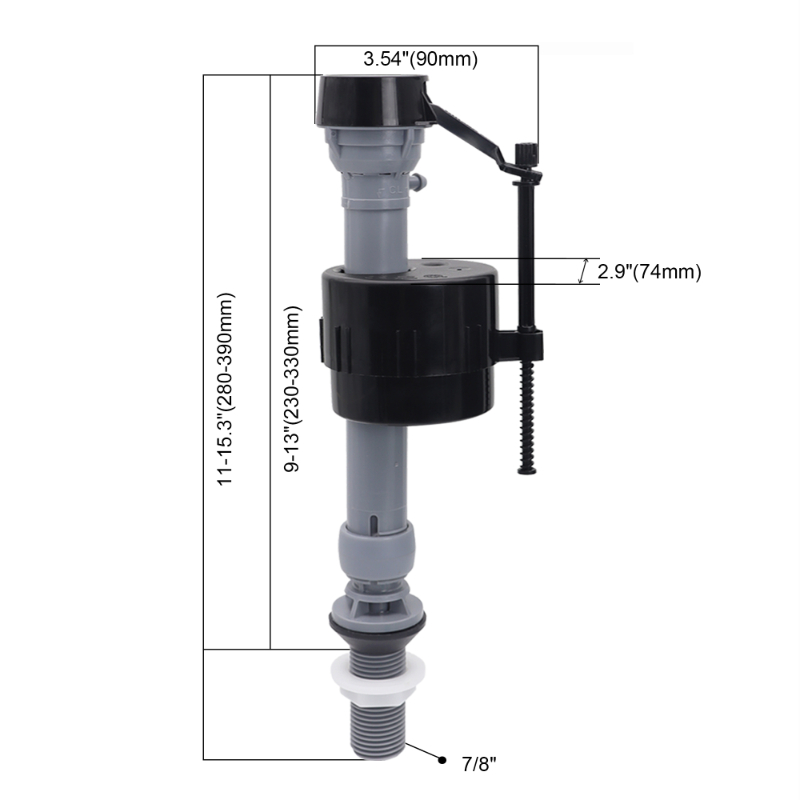

The adjustable height range is 8 inches to 12 inches, making it suitable for different tank heights.
Best rated toilet fill valve has a wide operating water pressure range, functioning efficiently at a minimum of 0.03 MPa and ensuring rapid shut-off even under a maximum pressure of 1.5 MPa.
This toilet fill valve is selling well in the U.S. and Canada due to the following three features.First,the main body of the toilet fill valve is detachable, allowing for replacement of a faulty valve without removing the inlet pipe.Second,the needle valve structure provides better noise reduction for a quieter operation.Finally,the classic gray and black color combination is highly favored by the market.
The inlet connection is available in various sizes and thread types, with multiple material options to meet the requirements of different countries and regions.
Note:
The size and thread type of the inlet connection are critical for toilet fill valves. If you have any questions, please contact us immediately.
Anti-syphon Function: | Yes |
Refill Rate: | 0-28% |
Color: | Grey and Black |
Delivery Time: |
≤ 1000 pcs / 15 days ≤ 5000 pcs / 20 days > 5000 pcs / negotiate |
Sample Service | Yes |
Supply Ability | 50000 pcs / month |
Our tank fill valve toilet solution ensures efficient performance while significantly reducing refill noise. Known as a quiet fill toilet valve, this product combines advanced technology to deliver smooth and silent operation. This reliable quiet toilet fill valve easily replaces any standard toilet tank filler valve, enhancing your bathroom experience by providing peace and comfort with every flush.
PRODUCT ADVANTAGES
1. Proven Performance Across Multiple Markets
Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.
2. Comprehensive Customization Services
We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.
3. Certified for Global Compliance
This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.
FAQ
What are the dimensions and specifications of the water inlet of this product?
G1/2'' POM thread , 15/16-14NPSM POM thread / G7/8'' POM thread.
What is difference between G7/8'' and 15/16-14NPSM?
The G7/8" and 15/16-14NPSM inlet thread standards differ primarily in thread angle, pitch. The G7/8" follows the BSPP (British Standard Pipe Parallel) standard with a 55° thread angle and 11 TPI (threads per inch). In contrast, the 15/16-14NPSM adheres to the NPSM (National Pipe Straight Mechanical) standard with a 60° thread angle and 14 TPI.Although there are some differences in specifications,but it is not affected in the actual use of the toilet fill valve, and the G7/8 "and 15/16-14NPSM can be connected to the same water inlet pipe, and normal use.
How to choose the water inlet size of the toilet fill valve?
Asia and South America use G1/2, but Peru uses G7/8 "or 15/16-14NPSM, and North America uses 15/16-14NPSM.
What is the water pressure range for this product?
The applicable water pressure range for this bottom entry toilet fill valve is 4-205 psi.g,or 0.3-15 bar,or 0.03-1.5MPa.
What is the adjustable height range of this product?
The adjustable height range of this adjustable toilet fill valve is between 8 inches and 12 inches.
