The height of toilet dual flush valve have 180mm, 220mm, 260mm and 260mm with shelf. It is suitable for toilet tank of various heights.
Item No :
T0206Flush Type :
Dual FlushFlush Outlet Size :
2 InchToilet Configuration :
One-piece / Two-pieceCertification :
CE,CUPCWarranty :
3-5 YearsOrder(MOQ) :
1000Shipping Port :
XiamenCustom Service :
LOGO,Package,Color
PRODUCT DESCRIPTION

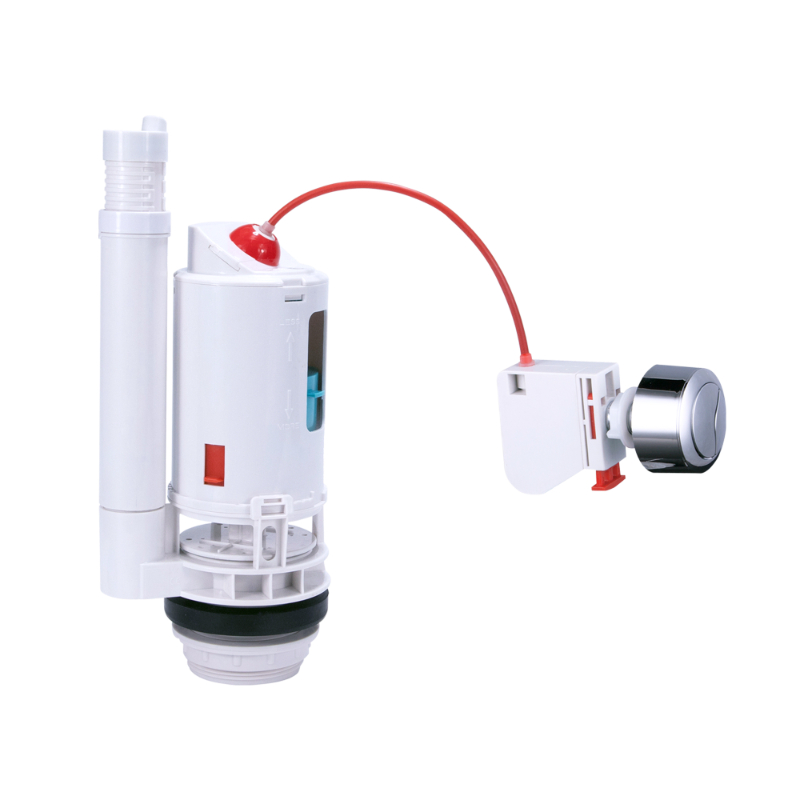

Product Name:Multiple Bucket Height Toilet Dual Flush Valve
The main body of this bottom entry toilet fill valve is made of ABS and is entirely produced using 100% virgin material, without any recycled materials. This ensures high overall strength and prevents cracking or bursting.Silicon seal is free from leaking, corrosion resistance, suitable for different water quality, long life-time.

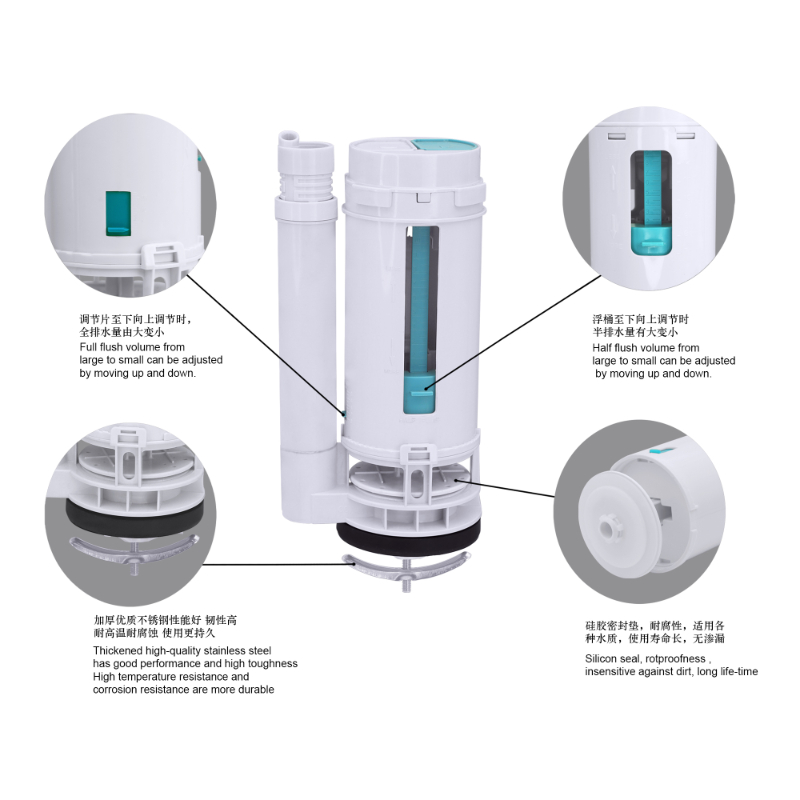

Half flush volume and full flush volume are adjustable.Half flush volume and full flush volume from large to small can be adjusted by moving float down to up.
The bottom can be separated and connected, and the overflow pipe can be adjustable and fixed, overflow pipe can be adjusted with a height of 200mm to 320mm. The bucket height have 180mm, 220mm, 260mm. If needed, we also offer a bracketed version based on the 260mm bucket height to accommodate taller toilet tanks. Note:Below is the product configuration and model correspondence table. Please select the appropriate model based on your needs.If you have any questions, please feel free to contact us.
Fixed Overflow Pipe | Adjustable Overflow Pipe | |
Suit for two-piece toilet |
T0206FG-180 T0206FG-220 T0206FG-260 T0206FG-260A |
T0206FK-180 T0206FK-220 T0206FK-260 T0206FK-260A |
Suit for one-piece toilet |
T0206LG-180 T0206LG-220 T0206LG-260 T0206LG-260A |
T0206LK-180 T0206LK-220 T0206LK-260 T0206LK-260A |
Below are more parametre details about this product.
Material: | ABS |
Control: | Top push button |
Flush Rate: | 2.4-3 L/S |
Delivery Time: |
≤ 1000 pcs / 15 days ≤ 5000 pcs / 20 days > 5000 pcs / negotiate |
Sample Service | Yes |
Supply Ability | 60000 pcs / month |
Our innovative toilet flush valve with shelf combines practicality with exceptional flushing performance. The Multiple Bucket Height Toilet Dual Flush Valve is designed to accommodate various toilet flush valve sizes, ensuring a seamless fit in nearly all installations. Ideal for anyone exploring toilet flush valve types with picture guides, this valve stands out as the perfect choice for a simple yet effective toilet flush valve upgrade, enhancing your bathroom's efficiency and comfort.
PRODUCT ADVANTAGES
1. Proven Performance Across Multiple Markets
Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.
2. Comprehensive Customization Services
We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.
3. Certified for Global Compliance
This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.
FAQ
What should be considered when purchasing this product?
First, consider whether the flush valve is intended for a two-piece or one-piece toilet. The base design of the flush valve differs based on the application: two-piece toilets use a nut to secure the flush valve, while one-piece toilets use a steel hook for fixation.
Second, choose between an adjustable overflow pipe and a fixed overflow pipe. The length of the overflow pipe is determined by the working water level of the tank. If the working water level is uncertain, it is recommended to select an adjustable overflow pipe. The fixed overflow pipe has a default length of 200mm, which is suitable for most toilet tanks.
What is the function of the overflow pipe?
The overflow pipe serves two functions:
First, When the water seal in the toilet bowl is insufficient, the refill tube of the inlet valve directs water through the overflow pipe to replenish the bowl. This helps form a water seal in the U-shaped trap, preventing sewer odors from escaping and contaminating the bathroom.
Second, In the event of a severe malfunction or rupture of the inlet valve that prevents it from stopping the water flow, the overflow pipe allows excess water in the tank to drain out. This prevents the tank from overflowing, which could otherwise flood the bathroom or even adjacent rooms, causing significant damage.
What is the drainage rate of this product?
The standard drainage rate of the toilet dual flush valve ranges from 2.4 to 3 liters per second.
What are the optional components for this product?
The default color for the half-flush button, half-flush float cup, and full-flush adjustment plate is green, but blue or other colors are also available.
If needed, we also offer a toilet flush valve with bracket based on the 260mm bucket height to accommodate taller toilet tanks.
What is the usual packing for this product?
It is packed with transparent PE bag and put into 50*35*40 blank outer box, each item can put 25 pcs, the weight is between 8.4KG and 9.7KG(The total box weight is affected by the bucket height).
WHY CHOOSE US?
1.Market Experience
Since 2004, we have been deeply engaged in the replacement and repair market. Our products have been tested by the market and continuously improved through multiple iterations. By choosing our products to expand your business, you can effectively avoid customer complaints.
2.Quality Guarantee
We adhere to high manufacturing standards, ensuring that every product undergoes rigorous testing for durability and compatibility. With our 3 years warranty, you can trust in the long-term reliability of our products, providing peace of mind for your business.
3.R&D Ability
We have our own product designers and packaging designers who can help you quickly develop and improve products to meet the needs of your local market. This ensures that your business gains recognition and success in your target market.
4.Customer Support
We assign a dedicated salesperson to each customer, providing market consultation in the early stages, detailed confirmation during production, and follow-up support after shipment. Our goal is to support your business at every step, ensuring a smooth and successful operation.
