This bottom entry toilet fill valve is compatible with most toilets and features an adjustable height design to fit various cisterns. It offers quickly shut-off, anti-siphon protection, and high-pressure resistance, ensuring efficient water refill and long-lasting performance.
Item No :
T1101Connector :
G1/2",15/16-14NPSM POM thread,or G1/2",G3/8"brass thread optionalWater Pressure :
4-205p.s.i.g(0.3-15bar)(0.03Mpa-1.5Mpa)Toilet Configuration :
One piece / Two pieceCertification :
CE,CUPC,ICCESWarranty :
3 YearsOrder(MOQ) :
1000Shipping Port :
XiamenCustom Service :
LOGO,Color,Package
PRODUCT DESCRIPTION

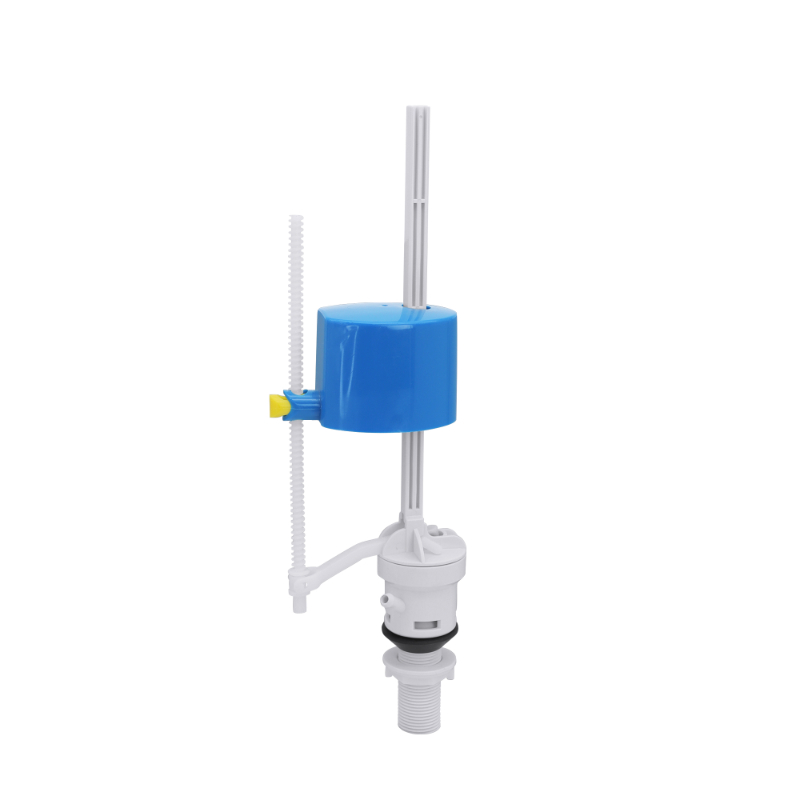

Product Name:Bottom Entry Adjustable Toilet Fill Valve
The main body of this bottom entry toilet fill valve is made of POM and is entirely produced using 100% virgin material, without any recycled materials. This ensures high overall strength and prevents cracking or bursting.
The product features double-floats and back-pressure structure, enabling a quickly shut-off function. It is also equipped with an anti-siphon base and gasket, effectively preventing backflow contamination.
The adjustable height range is 7.5 inches to 11.5 inches, making it suitable for different tank heights.
Best rated toilet fill valve has a wide operating water pressure range, functioning efficiently at a minimum of 0.03 MPa and ensuring rapid shut-off even under a maximum pressure of 1.5 MPa.
The inlet connection is available in various sizes and thread types, with multiple material options to meet the requirements of different countries and regions.
Note:
The size and thread type of the inlet connection are critical for toilet fill valves. If you have any questions, please contact us immediately.
Anti-syphon Function: | Yes |
Refill Rate: | 0-28% |
Color: | Blue / Green / Red |
Delivery Time: |
≤ 1000 pcs / 15 days ≤ 5000 pcs / 20 days > 5000 pcs / negotiate |
Sample Service | Yes |
Supply Ability | 50000 pcs / month |
Our Bottom Entry Toilet Fill Valve is the ideal solution for efficient and quiet tank filling. As an Adjustable Toilet Fill Valve, it ensures easy installation and precise water-level control, making it suitable for a variety of toilets. Recognized as one of the best toilet fill valves on the market, this fill valve toilet component guarantees durability, reliable performance, and significant water savings for your bathroom.
PRODUCT ADVANTAGES
1. Proven Performance Across Multiple Markets
Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.
2. Comprehensive Customization Services
We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.
3. Certified for Global Compliance
This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.
FAQ
What are the dimensions and specifications of the water inlet of this product?
G3/8'' brass thread , G1/2'' POM thread , G1/2'' brass thread , 15/16-14NPSM POM thread / G7/8'' POM thread.
What is difference between G7/8'' and 15/16-14NPSM?
The G7/8" and 15/16-14NPSM inlet thread standards differ primarily in thread angle, pitch. The G7/8" follows the BSPP (British Standard Pipe Parallel) standard with a 55° thread angle and 11 TPI (threads per inch). In contrast, the 15/16-14NPSM adheres to the NPSM (National Pipe Straight Mechanical) standard with a 60° thread angle and 14 TPI.Although there are some differences in specifications,but it is not affected in the actual use of the toilet fill valve, and the G7/8 "and 15/16-14NPSM can be connected to the same water inlet pipe, and normal use.
How to choose the water inlet size of the toilet fill valve?
Europe and Africa use G3/8 ", the Middle East uses G3/8 "and G1/2", Asia and South America use G1/2, but Peru uses G7/8 "or 15/16-14NPSM, and North America uses 15/16-14NPSM.
What is the water pressure range for this product?
The applicable water pressure range for this bottom entry toilet fill valve is 4-205 psi.g,or 0.3-15 bar,or 0.03-1.5MPa.
What is the adjustable height range of this product?
The adjustable height range of this adjustable toilet fill valve is between 7.5 inches and 11.5 inches.
What is the usual packing for this product?
It is packed with transparent PE bag and put into 50*35*40 blank outer box, each item can put 70 pcs, the weight is between 16.8KG and 19KG (weight affected by the material of the water inlet connector).
WHY CHOOSE US?
1.Market Experience
Since 2004, we have been deeply engaged in the replacement and repair market. Our products have been tested by the market and continuously improved through multiple iterations. By choosing our products to expand your business, you can effectively avoid customer complaints.
2.Quality Guarantee
We adhere to high manufacturing standards, ensuring that every product undergoes rigorous testing for durability and compatibility. With our 3 years warranty, you can trust in the long-term reliability of our products, providing peace of mind for your business.
3.R&D Ability
We have our own product designers and packaging designers who can help you quickly develop and improve products to meet the needs of your local market. This ensures that your business gains recognition and success in your target market.
4.Customer Support
We assign a dedicated salesperson to each customer, providing market consultation in the early stages, detailed confirmation during production, and follow-up support after shipment. Our goal is to support your business at every step, ensuring a smooth and successful operation.
