The adjustable height float ball toilet fill valve performs better in low water pressure areas. By adjusting the height of the connecting rod and main body, the float ball position can be controlled to precisely regulate the water tank level.
Item No :
T1210Connector :
G1/2",15/16-14NPSM ABS threadWater Pressure :
4-120p.s.i.g(0.2-8bar)(0.02Mpa-0.8Mpa)Toilet Configuration :
One piece/two pieceWarranty :
3yearsOrder(MOQ) :
1000Shipping Port :
XiamenCustom Service :
LOGO,Package,Color
PRODUCT DESCRIPTION
Product Name:Adjustable Height Piston Toilet Fill Valve
The main body of this bottom entry toilet fill valve is made of ABS and is entirely produced using 100% virgin material, without any recycled materials. This ensures high overall strength and prevents cracking or bursting.
This product utilizes the buoyancy of the float ball to drive the connecting rod and achieve the water shut-off function. As a result, it performs better than the float cup structure in low water pressure areas but is not suitable for high water pressure environments.The small blue nut adopt a toothed design can adjust water lever from any direction.Convenient and easy to use.The material of the adjusting rod is POM.

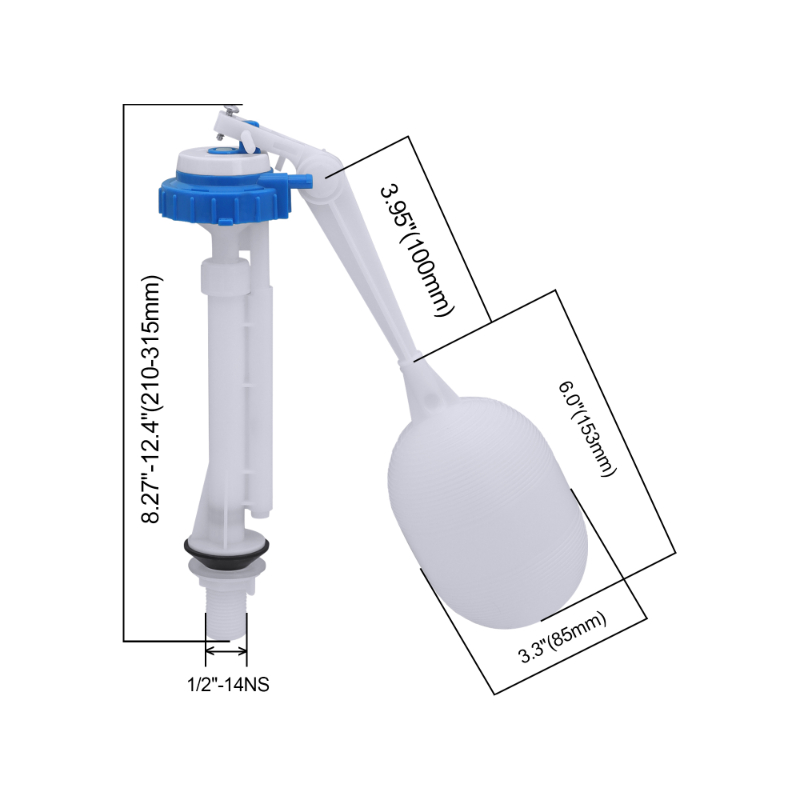

The adjustable height range is between 210mm to 315mm, making it suitable for different tank heights.
Adjustable height float ball toilet fill valve has a operating water pressure range, functioning efficiently at a minimum of 0.02 MPa and ensuring rapid shut-off even under a maximum pressure of 0.8 MPa.
The inlet connection is available in various sizes, with multiple material options to meet the requirements of different countries and regions.
Note:
The size of the inlet connection are critical for toilet fill valves. If you have any questions, please contact us immediately.
Anti-syphon Function: | Yes |
Refill Rate: | 0-28% |
Color: | White |
Delivery Time: |
≤ 5000 pcs / 20 days ≤ 20000 pcs / 30 days > 20000 pcs / negotiate |
Sample Service | Yes |
Supply Ability | 50000 pcs / month |
Our Adjustable Height Piston Toilet Fill Valve is expertly engineered as a fast toilet fill valve, reducing refill times significantly for a seamless bathroom experience. Renowned as the quietest toilet fill valve available, it ensures near-silent operation every time. Recognized among the best fill valve toilet solutions, this versatile valve accommodates various toilet fill valve sizes, offering flexibility, precision, and optimal water efficiency for all your toilet maintenance needs.
PRODUCT ADVANTAGES
1. Proven Performance Across Multiple Markets
Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.
2. Comprehensive Customization Services
We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.
3. Certified for Global Compliance
This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.
FAQ
What are the dimensions and specifications of the water inlet of this product?
G1/2'' POM thread, 15/16-14NPSM POM thread / G7/8'' POM thread.
What is difference between G7/8'' and 15/16-14NPSM?
The G7/8" and 15/16-14NPSM inlet thread standards differ primarily in thread angle, pitch. The G7/8" follows the BSPP (British Standard Pipe Parallel) standard with a 55° thread angle and 11 TPI (threads per inch). In contrast, the 15/16-14NPSM adheres to the NPSM (National Pipe Straight Mechanical) standard with a 60° thread angle and 14 TPI.Although there are some differences in specifications,but it is not affected in the actual use of the toilet fill valve, and the G7/8 "and 15/16-14NPSM can be connected to the same water inlet pipe, and normal use.
How to choose the water inlet size of the toilet fill valve?
South America use G1/2, but Peru uses G7/8 "or 15/16-14NPSM, and North America uses 15/16-14NPSM.
What is the water pressure range for this product?
The applicable water pressure range for this bottom entry toilet fill valve is 4-120p.s.i.g,0.2-8bar,0.02Mpa-0.8Mpa.
What is the adjustable height range of this product?
The adjustable height range of this adjustable toilet fill valve is between 215mm to 315mm.
What is the usual packing for this product?
It is packed with transparent PE bag and put into 50*35*40 blank outer box, each item can put 40 pcs, the weight is 9.3KG.
